DME XPress Series

The all new DME XPress mold base sets the standard for immediate shipment with 58,000 combinations ready for same or next day shipment.

Featuring:

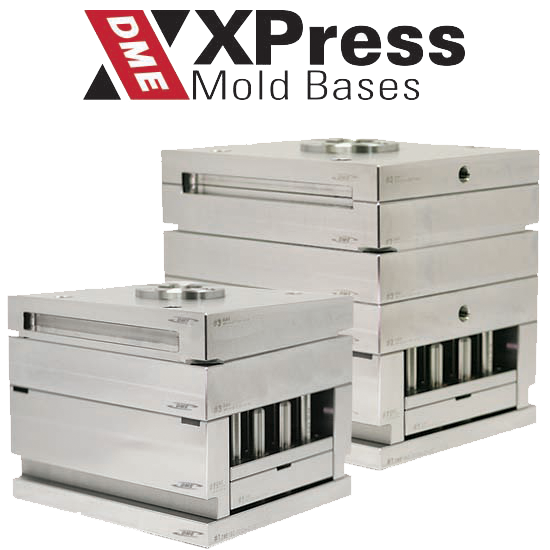

XPress Mold Bases Family

Check out the exciting XPress A-Seiries, B-Series  and Stainless Steel A-Series and B-Series . Click Here

XPress Plus

Want an XPress mold base, but with some customization. Click Here

XPress CAD Data

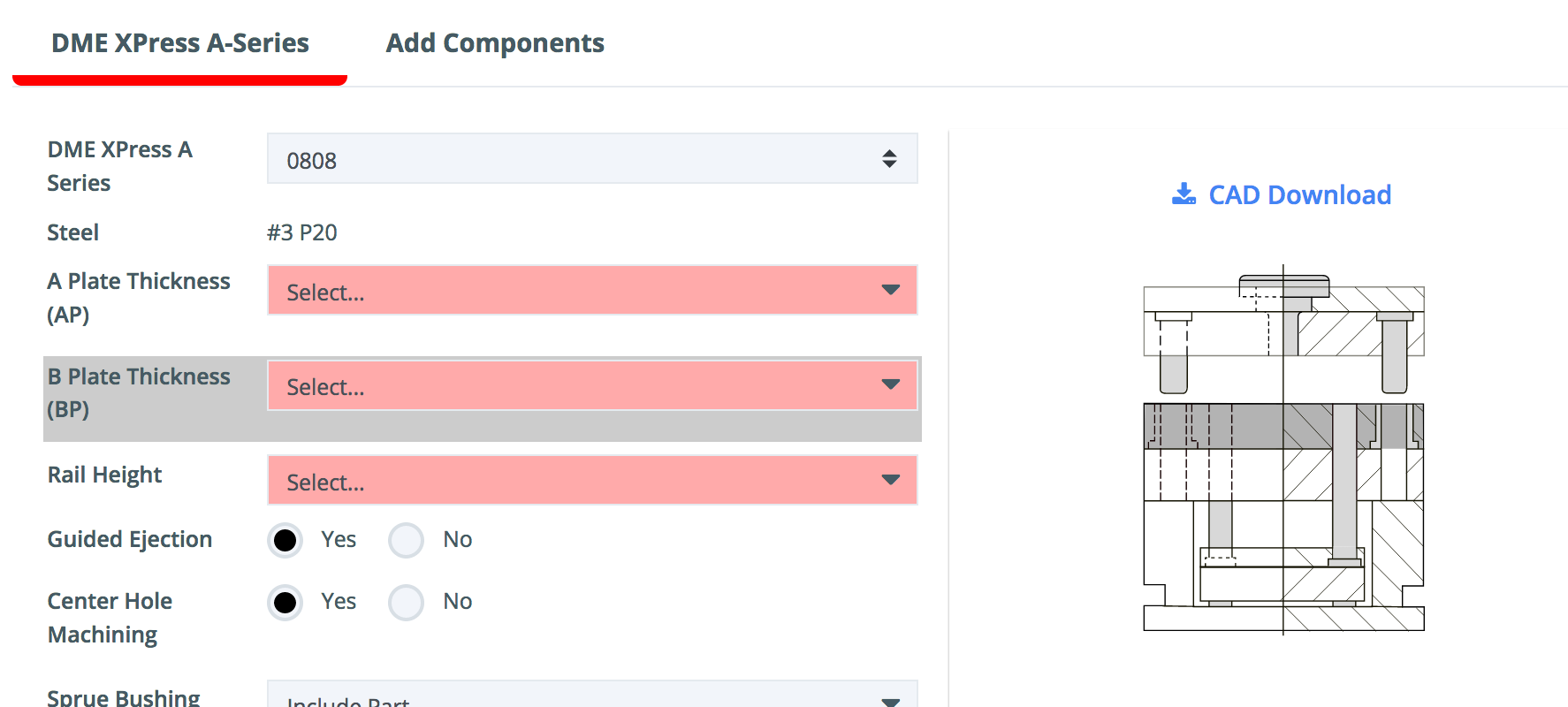

Need CAD data for XPress Mold Bases Click Here or visit the DME Configurator to build one on-line.

Purchase on DME eStore

Only at DME

Quick Ship, Precision Interchangeable Plates, Fully Featured

Meet The XPress Family

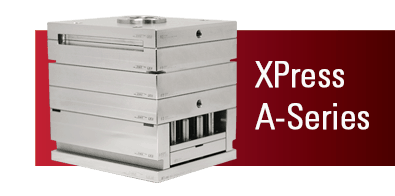

DME XPress A-Series

Features:

Stress Relieved & Pre-Hardened Steel

  • Increases your cutting speeds
  • Reduces machine center spindle time
  • Avoid unnecessary downtime
  • Extended tool life
  • DME #3 premium P20 steel –  “Machined 4 Quality”

Interchangeable plates

  • Precision machined
  • Repeatable
  • Replacement plates ship same day

Off the Shelf

  • 58,000 configurations
  • Engineered and validated
  • Immediate shipment*

Immediate Quotes and Orders – eStore

  • Configurable mold base
  • Real-time pricing on-line 24/7
  • Add to cart, Order
  • Emailed confirmation

Configure, Price, Order  < 1 Minute

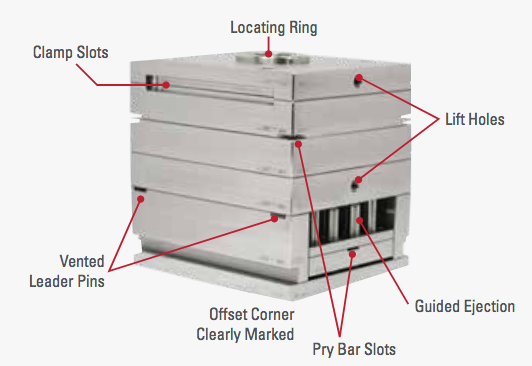

Standard Mold Base Features Include:

  • 7 Plate A-Series Design
  • 23 Sizes –  8”x 8” to 19”x 24”
  • 9 A/B-Plate thicknesses – 7/8” to 5-7/8”
  • 162 A/B-Plate combinations
  • Rail Heights 2.5”- 4.5”
  • #3 Premium P20 steel for A and B-Plates
  • Steel Finish Ground ± .001”
  • Center Holes – A-side only (optional)
  • Guided Ejection – system #3 (optional)
  • Return Pins – inboard (prevents spring breakout)
  • Locating Ring (optional)
  • Sprue Bushing (optional)
  • Lift Holes – Top Clamp/Support plates
  • Vented Leader Pins
  • Type C Clamp Slots
  • Pry Bar Slots on parting line and ejector plate
  • Chamfering on all plate edges
  • Stop Disks
  • 3-Piece Ejector Housing with shoulder bolts

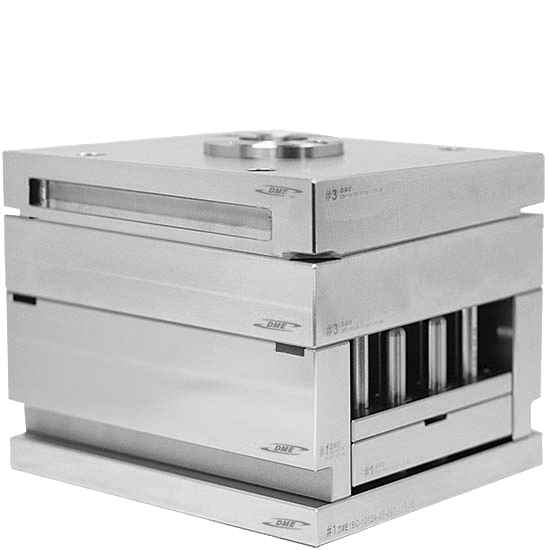

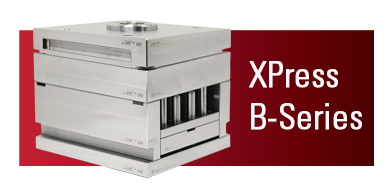

DME XPress B-Series

Features:

Stress Relieved & Pre-Hardened Steel

  • Increases your cutting speeds
  • Reduces machine center spindle time
  • Avoid unnecessary downtime
  • Extended tool life
  • DME #3 premium P20 steel –  “Machined 4 Quality”

Interchangeable plates

  • Precision machined
  • Repeatable
  • Replacement plates ship same day

Off the Shelf

  • 58,000 configurations
  • Engineered and validated
  • Immediate shipment*

Immediate Quotes and Orders – eStore

  • Configurable mold base
  • Real-time pricing on-line 24/7
  • Add to cart, Order
  • Emailed confirmation

Configure, Price, Order  < 1 Minute

Standard Mold Base Features Include:

  • 5 Plate B-Series Design
  • 23 Sizes –  8”x 8” to 19”x 24”
  • 7 AC/B-Plate thicknesses – 7/8” to 5-7/8”
  • 126 AC/B-Plate combinations
  • Rail Heights 2.5”- 4.5”
  • #3 Premium P20 steel for AC and B-Plates
  • Steel Finish Ground ± .001”
  • Center Holes – A-side only (optional)
  • Guided Ejection – system #3 (optional)
  • Return Pins – inboard (prevents spring breakout)
  • Locating Ring (optional)
  • Sprue Bushing (optional)
  • Vented Leader Pins
  • Clamp Slots
  • Pry Bar Slots on parting line and ejector plate
  • Chamfering on all plate edges
  • Stop Disks
  • 3-Piece Ejector Housing with shoulder bolts



Series Features

A-Series Features

  • 7 Plate A-Series design
  • #3 Premium P20 for A and B plates
  • Stress Relieved and Pre-hardened
  • Steel Finish Ground ± .001”
  • Interchangeable plates
  • Center hole – in Top clamp and A plate (optional)
  • Guided Ejection – System #3 (optional)
  • Return Pins – Position #2, inboard (prevents spring breakout)
  • Vented leader pins
  • Type “C” clamp slots
  • Lift Holes (top clamp plate and support plate)
  • Pry bar slots on parting line and ejector plate
  • Chamfering on all plate edges
  • Stop disks
  • 3-Piece ejector housing with shoulder bolts
  • Sprue Bushing (optional)
  • Locating Ring (optional)
  • High tolerance

B-Series Features

  • 5 Plate “B” Series Design
  • No. 3 Premium P20 for AC and B Plates
  • Stress Relieved and Pre-hardened
  • Steel Finish Ground ± .001”
  • Interchangeable Plates
  • Center hole – In A clamp plate, Option
  • Guided Ejection – System #3, Option
  • Return Pins – Position #2, Inboard (prevents spring breakout)
  • Vented Leader Pins
  • Clamp Slots
  • Pry bar slots on parting line and ejector plate
  • Chamfering on all plate edges
  • Stop Disks
  • 3-Piece ejector housing with shoulder bolts
  • Sprue Bushing, Option
  • Locating Ring, Option
  • High Tolerance

DME XPress Benefits

  • Same or Next Day Ship
  • Interchangeable plates
  • 23 Sizes – 8”x 8” to 19”x 24”
  • 9 – A/B plate thicknesses – 7/8” to 5 7/8”
  • 288 A/B plate combinations
  • 2.5″ to 4.5″ rail height
  • Design is fully engineered and validated
  • Off the shelf
  • Replacement plates, ship same day
  • Extends time available to design

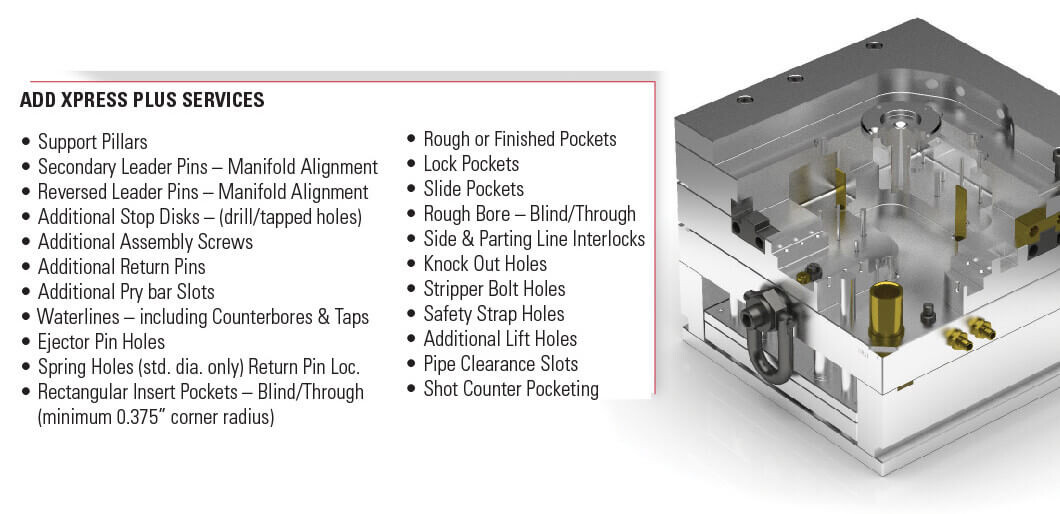

DME XPress Plus

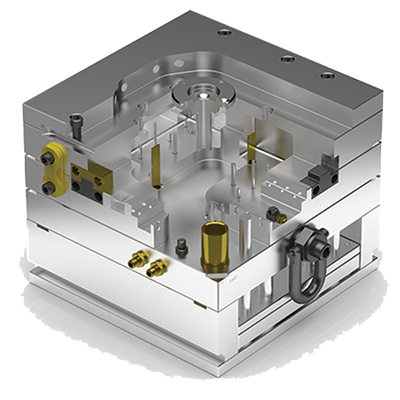

DME XPressPlus offers the XPress mold base features, plus additional services to meet your needs at a 50% faster lead time than the industry standard.

XPress CAD Data

DME XPress Mold Base CAD

All 3D CAD zip files contain: Solidworks parametric, Creo & Parasolid drawings

CAD files for DME XPress A-Series Mold Bases are configured with 1-7/8″ A-plate and 1-7/8″ B-plate.

CAD files for DME XPress B-Series Mold Bases are configured with 1-7/8″ A Clamping-plate and 1-7/8″ B-plate.

For all other configurations please email the configuration to dme_mech_eng@milacron.com

Choose an XPress series below for CAD links

All CAD files are for DME XPress™ Mold Bases are configured with a default A-clamp plate and B-plate thicknesses. For specific standard A-clamp plate and B-plate configurations please email your request to dme_mech_eng@milacron.com.

DME XPress A-Series Mold Base CAD Options:

Standard      No Guided Ejection Guided Ejection/No Center Holes No Guided Ejection/No Center Holes
88 88 88 88
812 812 812 812
108 108 108 108
1012 1012 1012 1012
1016 1016 1016 1016
1112 1112 1112 1112
1114 1114 1114 1114
1118 1118 1118 1118
1212 1212 1212 1212
1215 1215 1215 1215
1220 1220 1220 1220
1315 1315 1315 1315
1318 1318 1318 1318
1321 1321 1321 1321
1518 1518 1518 1518
1524 1524 1524 1524
1616 1616 1616 1616
1620 1620 1620 1620
1623 1623 1623 1623
1818 1818 1818 1818
1820 1820 1820 1820
1823 1823 1823 1823
1924 1924 1924 1924

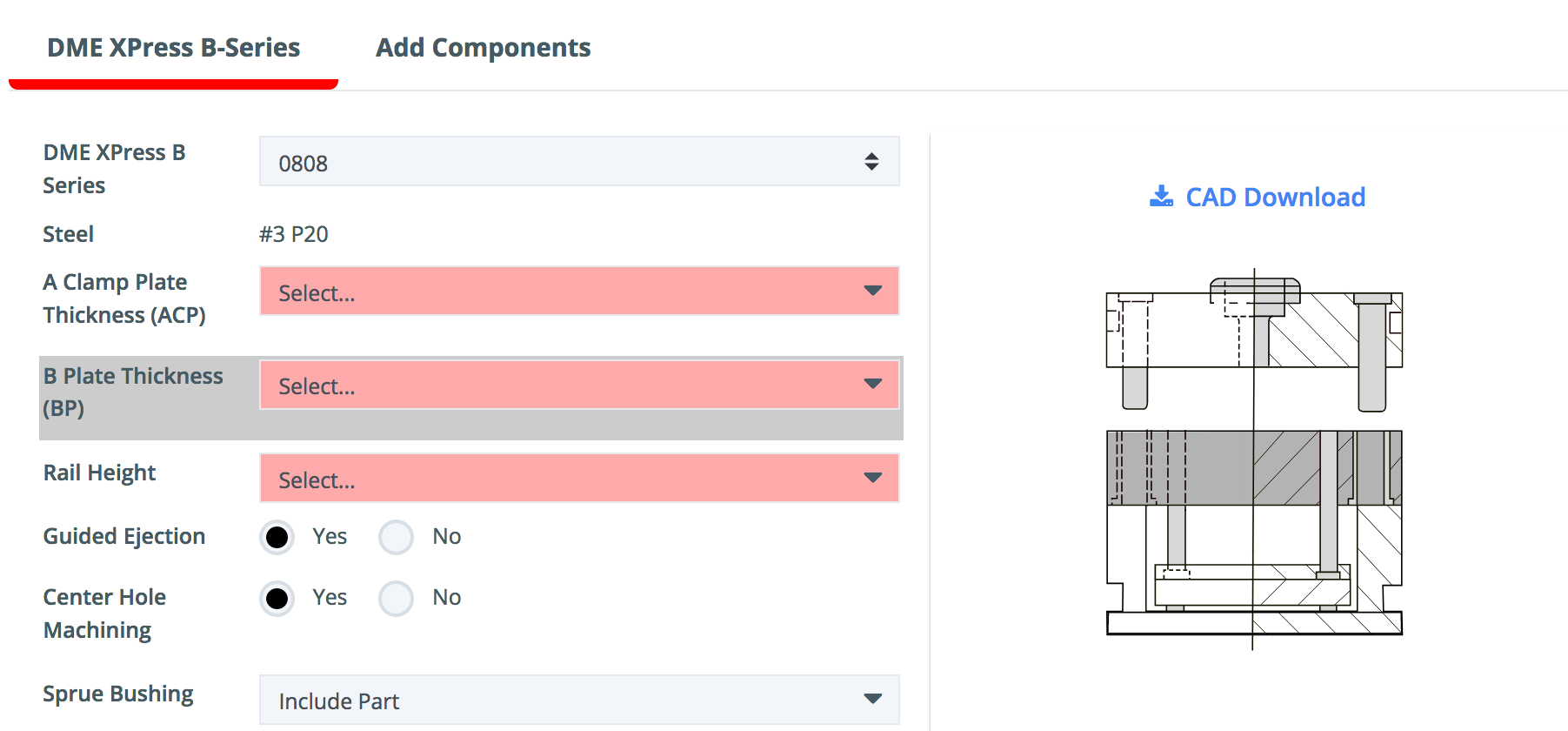

DME XPress B-Series Mold Base CAD Options:

Standard      No Guided Ejection Guided Ejection/No Center Holes No Guided Ejection/No Center Holes
88 88 88 88
812 812 812 812
1008 1008 1008 1008
1012 1012 1012 1012
1016 1016 1016 1016
1112 1112 1112 1112
1114 1114 1114 1114
1118 1118 1118 1118
1212 1212 1212 1212
1215 1215 1215 1215
1220 1220 1220 1220
1315 1315 1315 1315
1318 1318 1318 1318
1321 1321 1321 1321
1518 1518 1518 1518
1524 1524 1524 1524
1616 1616 1616 1616
1620 1620 1620 1620
1623 1623 1623 1623
1818 1818 1818 1818
1820 1820 1820 1820
1823 1823 1823 1823
1924 1924 1924 1924

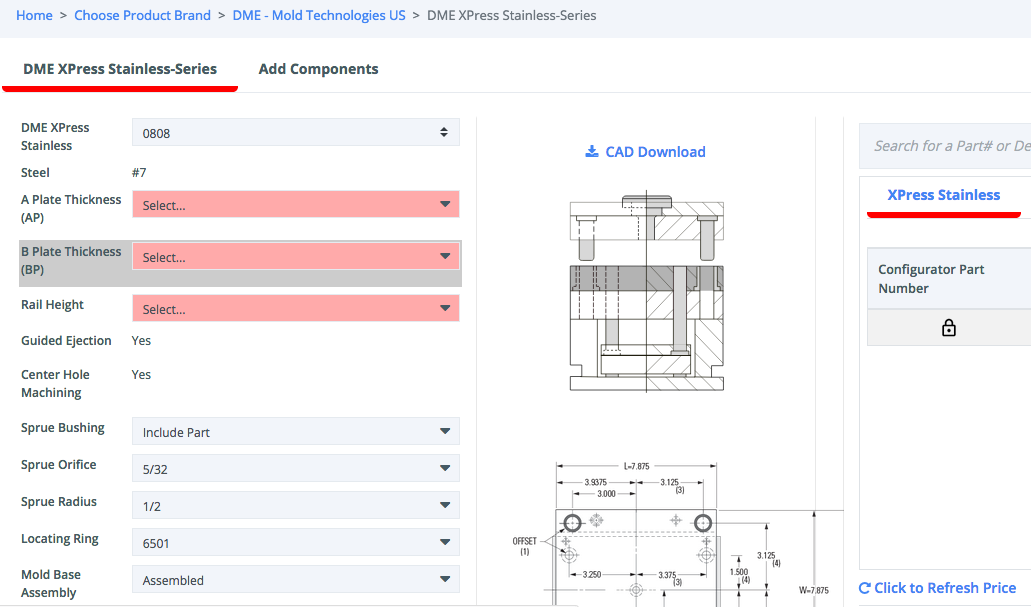

DME XPress Stainless Steel A-Series Mold Base CAD Options:

For A & B-series DME XPress Plus CAD please choose from A or B-series above

Standard (with Guided Ejection & Center Holes)
88
812
1012
1016
1118
1215
1318
